Training & Sweeps

Training Pipeline

The training loop leverages Flax NNX functional state management. The core update step uses @jax.jit to fuse the forward pass, loss computation, and optimizer updates into a single, highly optimized XLA kernel. There is also the "not splitted version", which uses @nnx.jit. However, as per flax documentation (https://flax.readthedocs.io/en/stable/guides/performance.html), the one with @jax.jit is faster for smaller model/batch size.

Execution

# Run using the default configuration file
python train.py --config configs/default_config.yaml

# Dynamically override parameters via CLI
python train.py --batch_size 64 --lr 5e-4 --use_moe True

Monitoring & Logging

Every execution generates an isolated artifact directory (runs/run_YYYYMMDD_HHMMSS/) containing the state of the experiment: config.yaml, model_summary.json, training_log.csv, and the serialized model_weights.msgpack.

Live Console Output:

Step   50/4200 | Train: 4.1204 (Bal: 0.0452) | Val: 4.1560 (Bal: 0.0461) | VRAM: 3.42GB
Step  100/4200 | Train: 3.8901 (Bal: 0.0421) | Val: 3.9102 (Bal: 0.0415) | VRAM: 3.42GB

Tracked Metrics:

Hyperparameter Tuning (W&B Sweeps)

DantinoX natively supports automated hyperparameter search using Weights & Biases (W&B). The search relies on a Bayesian optimization strategy designed to minimize the validation loss (val_loss) by efficiently exploring architectural and training configurations.

To launch a sweep, use the provided configuration.

Sweep Configuration (sweep.yaml)

program: train_sweep.py
method: bayes
metric:
  name: val_loss
  goal: minimize
parameters:
  epochs:
    values: [12, 16, 20, 24]
  optimizer:
    values: ["adamw", "adafactor", "lion"]
  tokenizer_type:
    values: ["char", "bpe"]
  max_context:
    values: [256, 512]
  weight_tying:
    values: [true, false]
  dropout_rate:
    values: [0.0, 0.1, 0.15]
  lr:
    distribution: log_uniform_values
    min: 0.0001
    max: 0.005
  batch_size:
    values: [16, 32, 64]
  grad_accum:
    values: [2, 4, 8]
  warmup_steps:
    values: [50, 100, 200]
  dim:
    values: [256, 512]
  num_blocks:
    values: [4, 8, 12]
  kv_heads:
    values: [2, 4]
  use_moe:
    values: [true, false]
  n_experts:
    values: [4]
  top_k_mlp:
    values: [1, 2]
  expansion:
    values: [2, 4]
  alpha_balance:
    distribution: uniform
    min: 0.01
    max: 0.15
  sliding_window:
    values: [true, false]
  context_window:
    values: [32, 64, 128]
  no_sink:
    values: [true, false]
  pos_encoding:
    values: ["rotary", "absolute"]
command:
  - ${env}
  - python
  - ${program}
  - ${args}

Execution

Initialize the sweep and start the agent:

wandb sweep sweep.yaml
wandb agent <USERNAME/PROJECT/SWEEP_ID>

⚠️ Technical Note on Grouped Query Attention (GQA): > To prevent tensor shape mismatches and XLA compilation crashes during the automated search, the total number of query heads (n_heads) and head dimensions (head_size) are dynamically calculated inside train_sweep.py based on the selected dim and kv_heads. This ensures that the attention projections remain mathematically consistent across all Bayesian trials.

Empirical Results & Ablation Studies

Through extensive hyperparameter sweeps (ID: cacbxc69) logged via Weights & Biases, we conducted a comprehensive ablation study. By isolating individual architectural choices, we evaluated their direct impact on convergence stability and memory efficiency.

Architectural Impact on Convergence

⚙️ Core Optimization & Routing	🧠 Attention Mechanisms

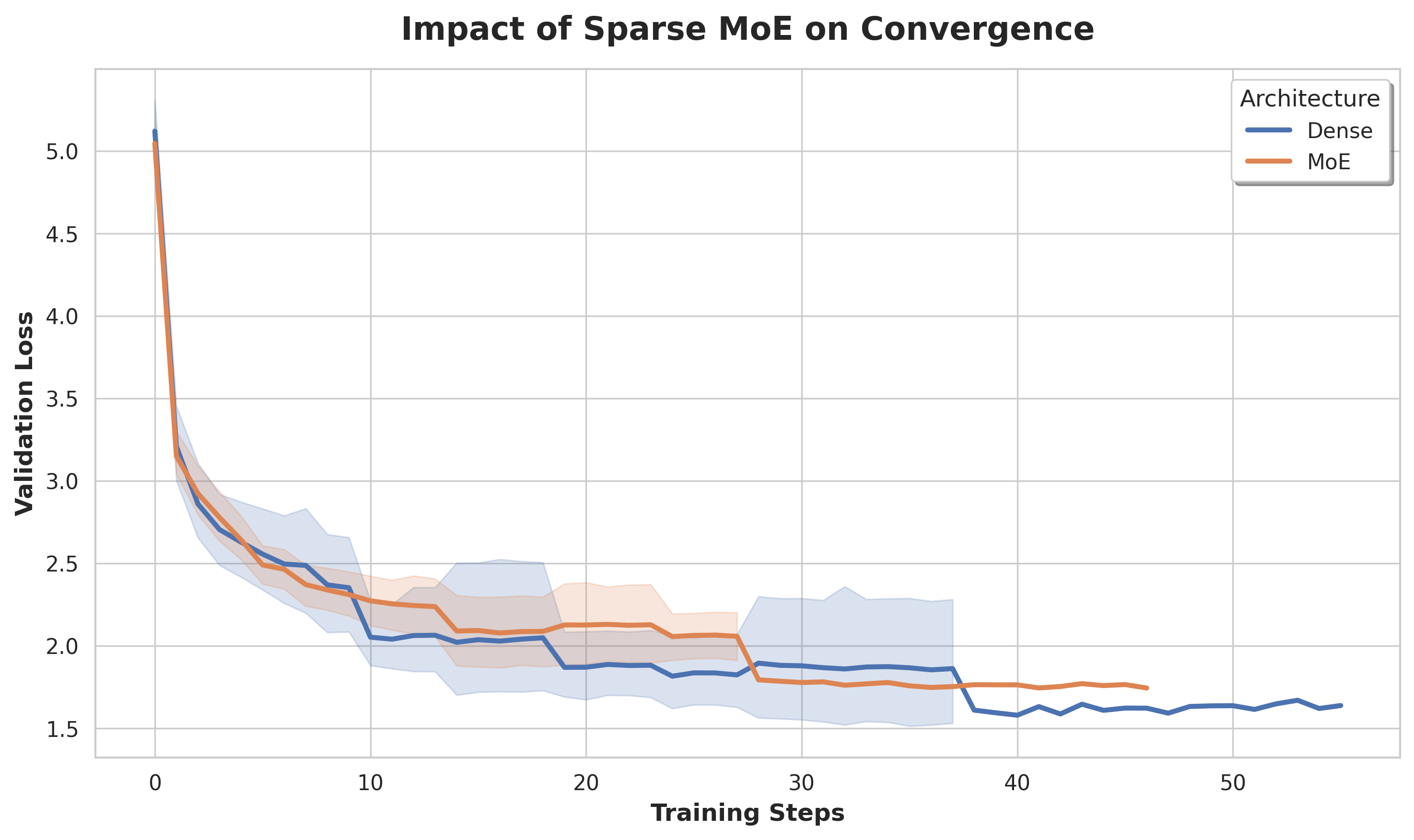

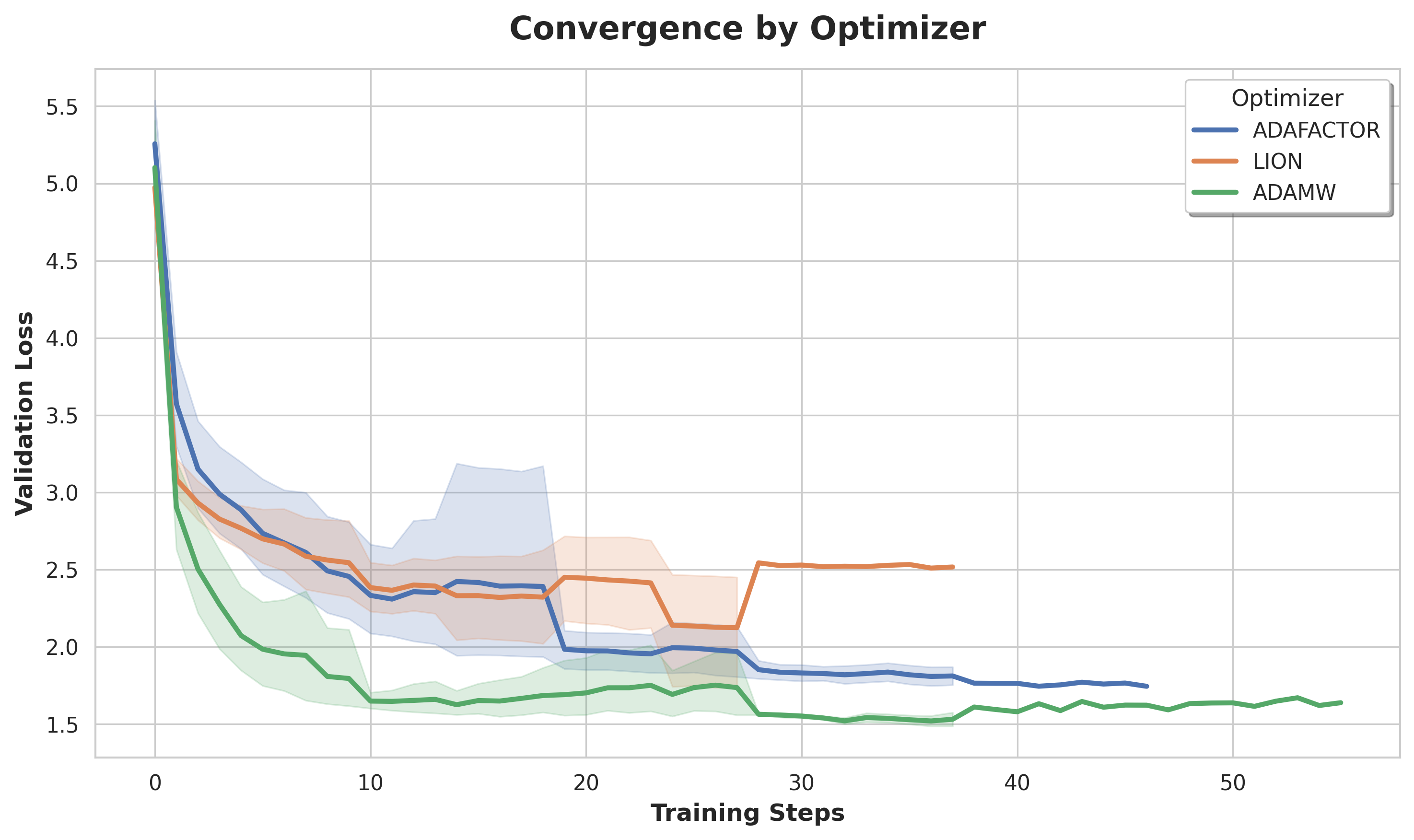

Convergence by Optimizer: Isolating the impact of the optimization algorithm across identical architectures.	Sparse MoE vs Dense: Evaluating the convergence speed when routing parameters through Top-K experts.

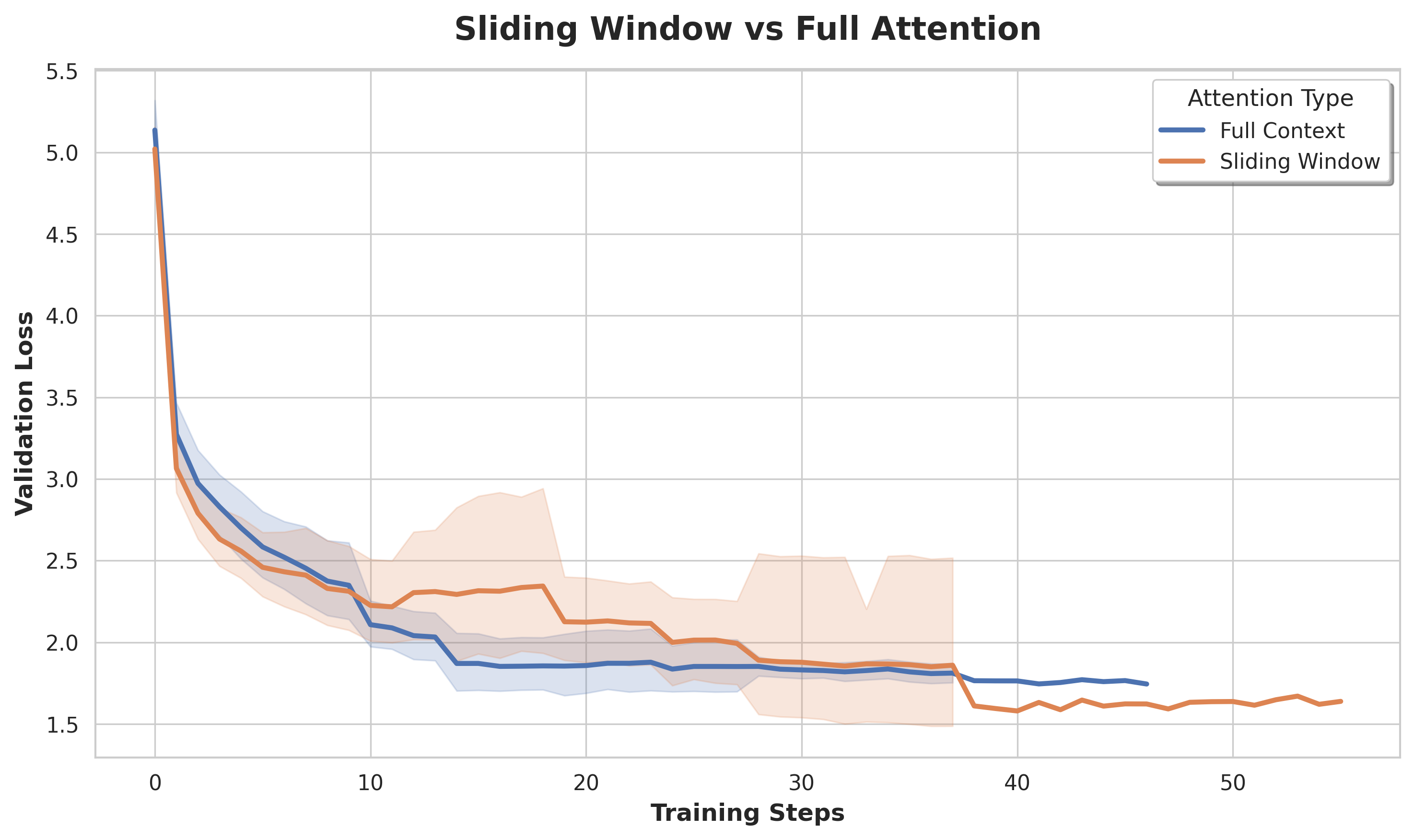

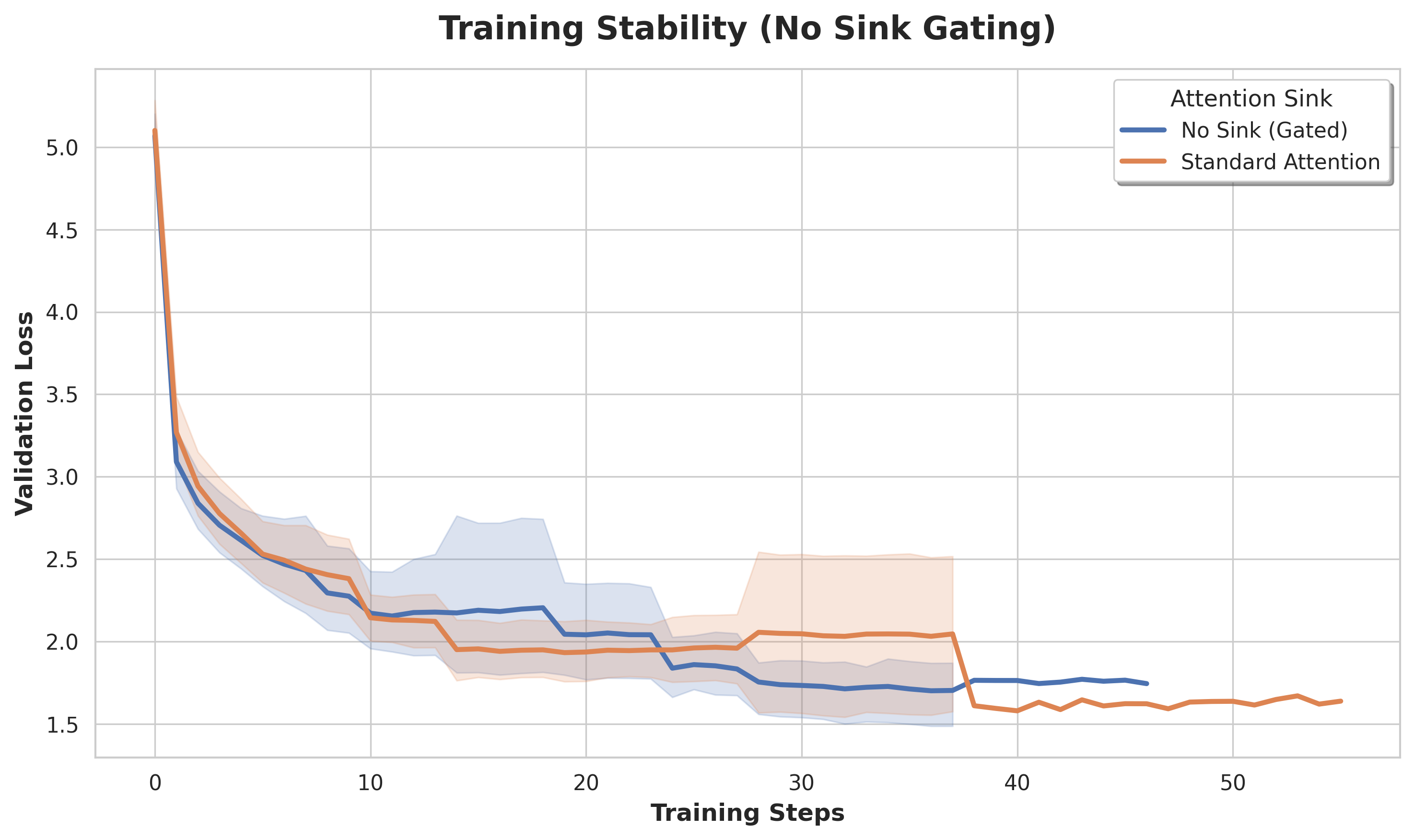

Sliding Window: Impact of restricting the attention receptive field on the learning trajectory.	Attention Sink Gating: Training stability achieved by applying a sigmoid gate (no_sink) to attention outputs.

Memory & Parameter Efficiency

🔗 Parameter Sharing	💾 Memory Footprint

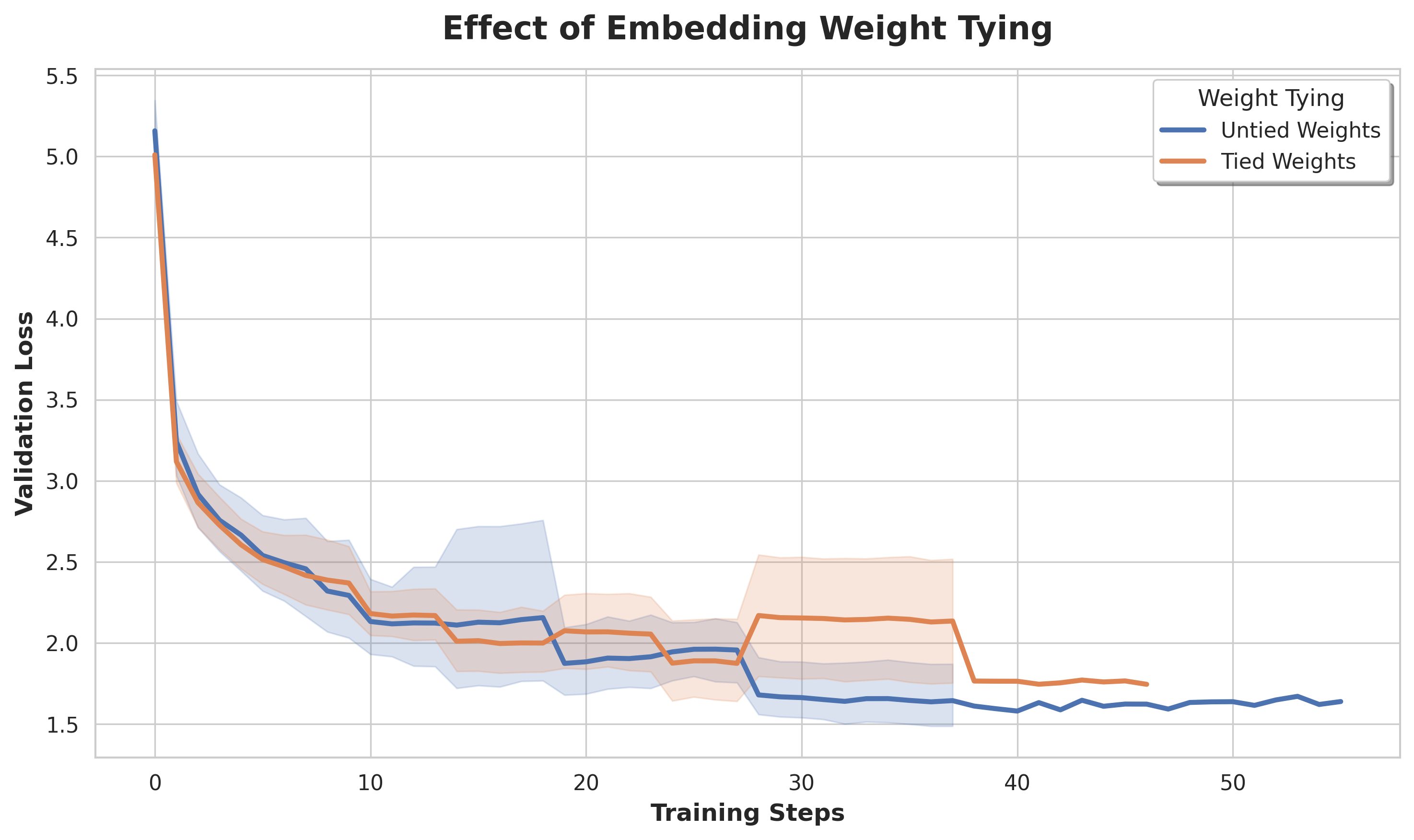

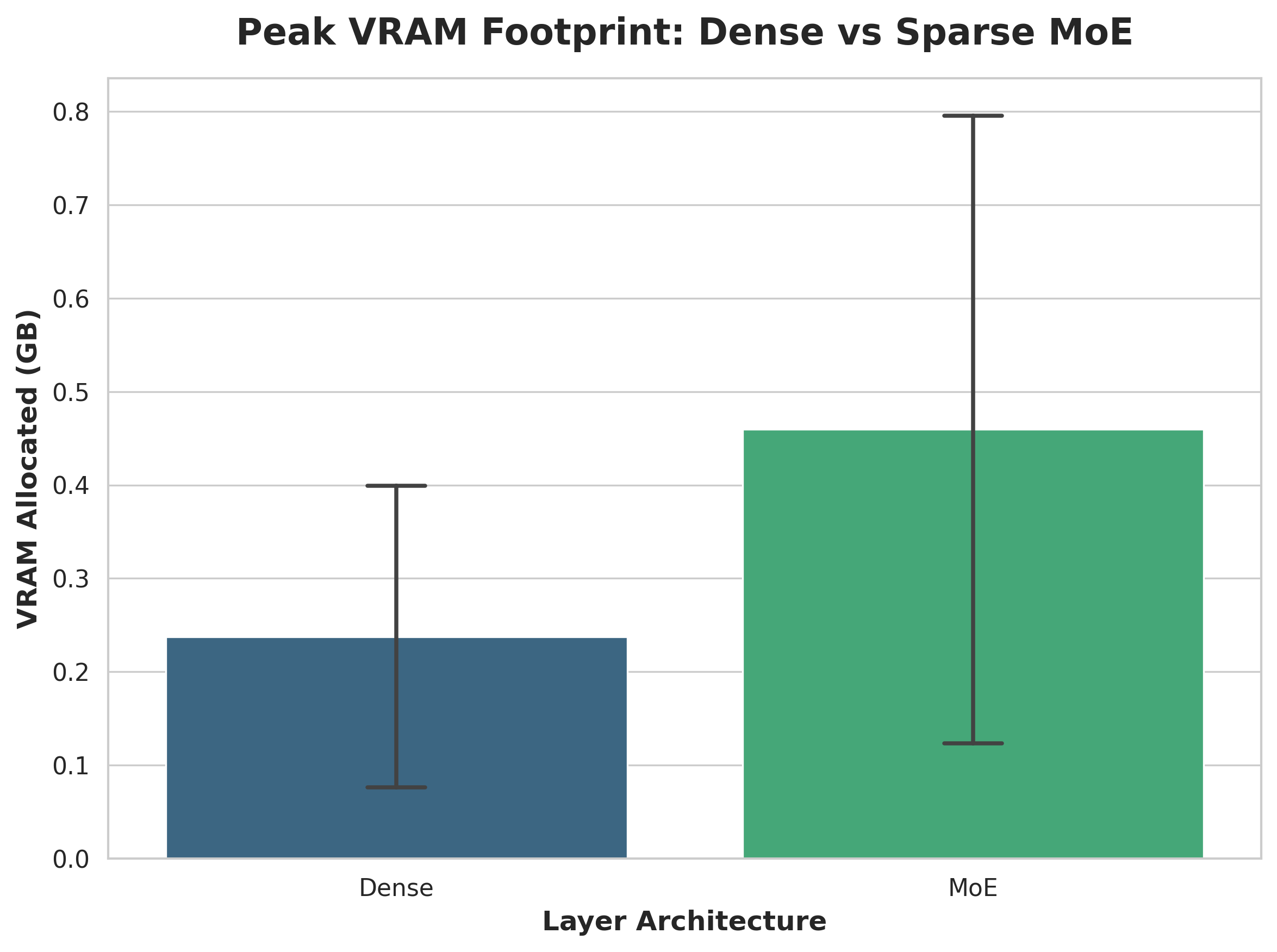

Weight Tying: Convergence behavior when tying the embedding matrix to the output language modeling head.	Peak VRAM (Dense vs Sparse MoE): Scaling capacity via MoE while maintaining a constrained VRAM footprint.

Charts generated automatically from W&B Sweep telemetry using the internal plotting scripts.

🔬 Deep Dive: JAX/Flax NNX Training Loop

Training in JAX requires bridging the gap between stateful model architectures and pure, functional transformations like jax.grad and jax.jit. DantinoX implements a highly optimized update step, explicitly managing the functional state to maximize XLA compilation efficiency.

1. Functional State Management (Graph vs State)

Flax NNX allows models to be written like standard Python objects, but JAX transformations strictly require pure functions. While DantinoX supports @nnx.jit for simplicity, the core training loop uses an explicit @jax.jit implementation.

# Extracting the static graph and the dynamic state/weights
graphdef, state = nnx.split(model)

2. The Core Update Step (@jax.jit)

The entire forward pass, loss computation, and backpropagation are fused into a single XLA kernel.

@jax.jit
def train_step(graphdef, state, opt_state, batch):
    def loss_fn(current_state):
        # 1. Reconstruct the stateful model inside the pure function
        model = nnx.merge(graphdef, current_state)

        # 2. Forward pass (returns logits, kv_cache, and MoE balancing loss)
        logits, _, balancing_loss = model(batch['input_ids'],
                                          use_cache=False,
                                          kv_caches=None,
                                          cache_index=None,
                                          deterministic=False)

        # 3. Autoregressive Cross-Entropy Loss
        # Shifting logits and labels for next-token prediction
        shift_logits = logits[:, :-1, :]
        shift_labels = batch['labels'][:, 1:]

        ce_loss = optax.softmax_cross_entropy_with_integer_labels(
            logits=shift_logits, labels=shift_labels
        ).mean()

        # 4. Total Loss Calculation
        total_loss = ce_loss + balancing_loss

        # 5. Extract the updated state (e.g., updated PRNGs for dropout)
        _, new_state = nnx.split(model)

        return total_loss, (new_state, balancing_loss, ce_loss)

    # Compute gradients and extract auxiliary outputs
    grad_fn = jax.value_and_grad(loss_fn, has_aux=True)
    (loss, (new_state, bal_loss, ce_loss)), grads = grad_fn(state)

    # Apply gradients via Optax
    updates, new_opt_state = optimizer.update(grads, opt_state, new_state)
    new_state = optax.apply_updates(new_state, updates)

    return new_state, new_opt_state, loss, bal_loss, ce_loss

Key Mechanics: * loss_fn purity: The model is merged and re-split entirely inside the loss function. This ensures jax.value_and_grad can trace the exact flow of gradients through the state without side-effects. * has_aux=True: Allows the loss function to return the updated model state (crucial for updating Dropout PRNG keys) and individual loss metrics alongside the total scalar loss.

3. Gradient Accumulation in XLA

For training on standard hardware, matching a large target global batch size requires gradient accumulation. In PyTorch, this is usually a manual loop. In JAX, writing custom accumulation loops breaks the static execution graph.

DantinoX handles this elegantly by pushing the accumulation logic directly into the Optax optimizer definition:

# Handled cleanly via Optax wrapper
optimizer = optax.MultiSteps(
    optax.adamw(learning_rate=config.lr),
    every_k_schedule=config.grad_accum
)
